$2,499.00

2009 E-TON Matrix R4-150
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

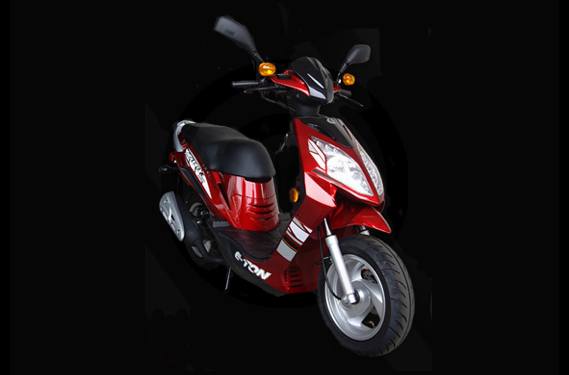

Introducing the 2009 E-TON Matrix 150 Scooter, the next generation of the popular Beamer Matrix scooter line. This Beamer is powered by a 150cc 4 cycle engine that gives you great performance and an economical transportation alternative. With estimated mileage of 55mpg, the 2009 Matrix 150 is easy on the fuel bill.


This 2009 model is EPA approved and meets or exceed all other Federal DOT regulations.


The Matrix 150 is fully decked out with our Powder Coat 12” Aluminum Mag-Wheels and front and rear Hydraulic Disc HydrDisc© Brakes, and dual shock rear suspension.


The sporty look of the Matrix 150 gives you a stylish economical ride.

  • 149cc 4-stroke engine with estimated fuel efficiency of 60 or better MPG
  • 12" powder coat aluminum mag wheels
  • Front and rear HydrDisc® Hydraulic Disc Brakes
  • Race spec front suspension system
Engine
  • Type: Four cycle air/oil cooled (EPA Compliant) SOHC
  • Displacement: 149.5cc
  • Bore/Stoke: 57.4 x 57.8mm
  • Compression - Ratio / Pressure: 9.7 : 1 / 150-190psi
  • Torque: 10.5N m @ 6000rpm
  • Max Speed: 110kph - 70mph
  • EPA Approved: Meet or exceeds EPA clean air requirements and CA Green Sticker
  • Starting: Electrical starter with kick start backup
Transmission
  • Type: Automatic (C.V.T. V-Belt)
Chassis
  • Overall Length: 1915mm / 75.2"
  • Overall Width: 655mm / 25.8"
  • Overall Height: 1015mm / 40.0" (1270mm/50.2” w/ mirrors)
  • Seat Height: 780mm/30.1”
  • Wheel Base: 1355mm / 53.3"
  • Dry Weight: 112.5kg / 248.0 lb
Suspension
  • Front: Telescopic Fork, Travel 75mm/3.0”
  • Rear: Dual Adjustable Shocks, Travel 45mm/1.8”
Brakes
  • Front: 180mm HydrDisc© Hydraulic Disc
  • Rear: 180mm HydrDisc© Hydraulic Disc
Tires
  • Front: 120/70-12 —- 18psi / 1.25kg/cm2 (Cold)
  • Rear: 130/70-12 —- 25psi / 1.75kg/cm2 (Cold)
Carburetor
  • Make/Size: Kei-Hin CVEK-019 26mm with Manual Choke
  • Main Jet: 1.12mm
  • Pilot Jet: 0.35mm
  • Air Mixture Adjustment: Back out 1 - 2½turns
  • Idle Speed: Idle 1600 - 1800rpm
Battery
  • Lead Acid (Maintenance Free): 12V-8AH
  • Main Fuse: 10 Amp
Fluids
  • Fuel Type: Unleaded Gasoline 89 octane
  • Fuel Volume: 6.5 liters / 1.7gal
  • Engine Oil Type: SAE 20w-40
  • Engine Volume: 1.0 liters / 1.0 qt
  • Transmission Type: SAE 80W/90
  • Transmission Volume: 300cc / 10.2 oz
Spark Plug
  • NGK (recommended): BPR7HS
  • Nipendenso: W22FRP-U
  • Champion: QL82YC
  • Electrode Gap: 0.6-0.7mm / 0.023"
GVWR
  • GVWR (Total): 240kg. / 530lbs.
  • GAWR (Front): 76kg. / 167lbs.
  • GAWR (Rear): 165kg. / 164lbs.
Two Passenger
  • Yes

Specifications

Engine
Engine Type Four cycle air/oil cooled (EPA Compliant) SOHC
Displacement 149.5 cc
Bore and Stroke 57.4 x 57.8 mm
Cooling Air/oil cooled
Compression Ratio 9.7 : 1
Fuel System Kei-Hin CVEK-019 26 mm with Manual Choke
Chassis
Front Suspension Telescopic Fork; Travel: 3.0 in. (75 mm)
Front Brakes 180 mm HydrDisc© Hydraulic Disc
Front Tire 120/70-12
Rear Suspension Dual Adjustable Shocks; Travel: 1.8 in. (45 mm)
Rear Brakes 180 mm HydrDisc© Hydraulic Disc
Rear Tire 130/70-12
Dimensions
Dry Weight 248.0 lbs (112.5 kg)
Fuel Capacity 1.7gal (6.5 l)
Wheelbase 53.3 in. (1355 mm)
Seat Height 30.1 in. (780 mm)
Transmission
Transmission Automatic (C.V.T. V-Belt)
General
Colors Metallic Red, Deep Sea Blue

Compare Models

 Print








Year 2009
Manufacturer E-TON
Model Matrix R4-150
Style Standard
MSRP* $2,499.00
Chassis
Front Suspension Telescopic Fork; Travel: 3.0 in. (75 mm)
Front Brakes 180 mm HydrDisc© Hydraulic Disc
Front Tire 120/70-12
Rear Suspension Dual Adjustable Shocks; Travel: 1.8 in. (45 mm)
Rear Brakes 180 mm HydrDisc© Hydraulic Disc
Rear Tire 130/70-12
Storage
Dimensions
Dry Weight 248.0 lbs (112.5 kg)
Fuel Capacity 1.7gal (6.5 l)
Wheelbase 53.3 in. (1355 mm)
Seat Height 30.1 in. (780 mm)
Curb Weight
Engine
Engine Type Four cycle air/oil cooled (EPA Compliant) SOHC
Displacement 149.5 cc
Bore and Stroke 57.4 x 57.8 mm
Cooling Air/oil cooled
Compression Ratio 9.7 : 1
Fuel System Kei-Hin CVEK-019 26 mm with Manual Choke
Ignition
General
Speedometer
Tachometer
Odometer
Colors Metallic Red, Deep Sea Blue
Warranty
Transmission
Transmission Automatic (C.V.T. V-Belt)
